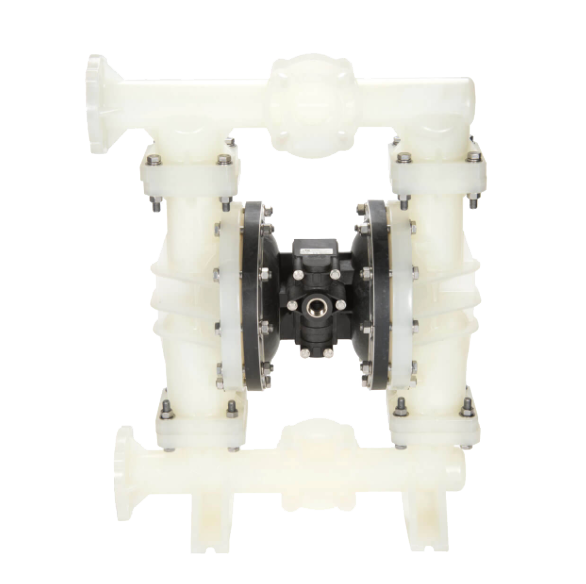

All-Flo Pump 2" Flanged Poly/Teflon
Model #: A200-FPP-TTPT-S70

Air Inlet

• 3/4" FNPT

Liquid Inlet

• 2"

Liquid Discharge

• 2"

Connection Type

• ANSI/DIN (Flanged)

Max Suction Lift Capability

• 17 ft-H2O (5.2 m-H2O) Dry

• 29 ft-H2O (8.8 m-H2O) Wet

Max Flow Rate

• 160 gpm (605 lpm)

Max Pressure

• 120 psi (8.2 bar)

Max Diameter Solids

• 1/4" (6.4 mm)

Displacement Per Stroke

• 0.48 gal (1.82 L)
