Atlas Copco Vacuum
As the leading innovator in the industrial vacuum market, Atlas Copco continues to focus on energy efficiency that translates into savings for customers and their processes. Atlas Copco products are the starting point to providing a total vacuum solution for dedicated point-of-use machines and central vacuum systems in industries ranging from Food Processing, Packaging, Canning, Extrusion and much more.

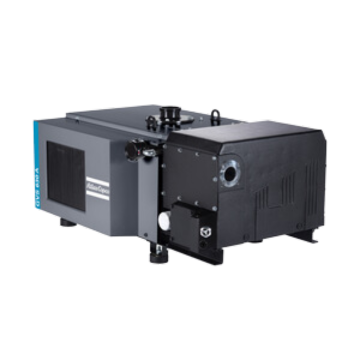

GVS A Series
Oil-Sealed Rotary Vane Vacuum Pump
GVS 16-630 A
Capacity: 11-494 ACFM
Ultimate Vacuum: 29.9 in-HgV
Horsepower: 1.2-25 HP
The GVS 16-630 A series operates according to the proven oil-sealed rotary vane principle that has been successfully used for many years in all general vacuum applications of industry packed with innovative features that ensure the highest possible performance at the lowest possible lifecycle cost. The GVS A series is easy to install due to compact, space-saving design. It ensures high reliability through a rugged design and optimal oil retention at all operating pressures maintaining low noise and vibration levels. With our coolest pump temperatures on the market we allow a longer oil lifetime.
GVS VSD+ Series
Oil-Sealed Rotary Vane with Built-In VSD
GVS 80-400 VSD+
Capacity: 44 - 224 ACFM
Ultimate Vacuum: 29.9 in-HgV
Horsepower: 3-15 HP
The GVS VSD⁺ series is a robust and highly regarded range of vacuum pumps with a technologically advanced design. GVS VSD⁺ operates according to the proven oil-sealed rotary vane principle that has been successfully used for many years in all general vacuum applications of the industry. With our GVS VSD⁺ range of intelligent rotary vane vacuum pumps, we have taken our traditional reliability a step further by adding intelligence through our Variable Speed Drive (VSD) technology and remote connectivity with our VSD⁺ app.
DHS VSD+ Series
Dry Screw Vacuum Pump with Built-In VSD
DHS 65-200 VSD+
Capacity: 38-118 ACFM
Ultimate Vacuum: 29.9 in-HgV
Horsepower: 2-5 HP
The DHS 065-200 VSD+ is a fully air-cooled, compact and clean dry screw vacuum pump. It’s robust design and small footprint makes it the perfect pump for industrial applications. This innovatively designed pump also features remote monitoring and control capabilities is efficient, has a low cost of ownership and is a truly clean vacuum pump.
DZS
Dry Claw Vacuum Pumps (Fixed Speed)
DZS 065-300
Capacity: 46-204 ACFM
Ultimate Vacuum: 25.4-28.4 in-HgV
Horsepower: 3-10 hp
The dry claw machine boasts some fantastic design features including stainless steel corrosion resistant
claws. The renowned Atlas Copco surface coating applied to the pumps process chambers has proven to be unrivalled in our compressors. The DZS also features dry oil-free pumping chamber, simple maintenance with contact free internals, simple air cooling, and a compact design with a small footprint.
DZS & DZM VSD Series
Dry Mono and Multi-Claw Vacuum Pumps
DZS 100-400 VSD+
Capacity: 60-232 ACFM
Ultimate Vacuum: 25.8-28.4 in-HgV
Horsepower: 4-15 HP
The DZS 100 VSD⁺, DZS 200 VSD⁺ and DZS 400 VSD⁺ are a range of Class 0 certified dry claw vacuum pumps; single stage, oil-free, air-cooled and with the VSD⁺ inverter drive technology built-in.
The DZS VSD⁺ series are a range of long life and durable pumps with very low maintenance for rough vacuum applications. These compact machines with small footprint deliver high reliability through a rugged and robust design.
DZM 600-1200 VSD
Capacity: 25-755 ACFM
Ultimate Vacuum: 25.4 in-HgV
Horsepower: 2-50 hp
We offer a complete multi-claw vacuum pumping system in a box. A solution perfectly designed to meet your larger process demands with a central vacuum system based on the renowned Atlas Copco compressor philosophy. At the heart of this system is the DZS 300 V claw pump providing efficiency, robustness and ultimate performance with best-in-class credentials. With three sizes of system available plus the option to expand the central vacuum system with centrally controlled multiple packages, we can offer a complete turn-key solution regardless of your requirements.
LRP VSD+
Liquid Ring Vacuum Pump with VSD
LRP 700-1000 VSD+
Capacity: 403-571 ACFM
Ultimate Vacuum: 29.2 in-HgV
Horsepower: 25-50 HP
The LRP VSD+ is a truly unique liquid ring vacuum pump, offering best in class performance and connectivity. The state-of-the-art vacuum technology housed in the IP54 rated wet/dry canopy provides optimum energy efficiency along with low operational and maintenance costs. With one of the smallest footprints for a pump in its class, the LRP VSD+ is delivered in a single neat enclosure. The stainless-steel impeller, endplates, liquid reservoir and heat exchanger makes this pump highly resilient against corrosion and harsh process gases. The LRP 700-1000 VSD+ is ideally suited for tough, wet and humid applications with liquid and solid carry over.
AWC, AWD & AWS A Series
Liquid Ring Vacuum Pumps (bare shaft) Single Stage & Two Stage
AWC 25-350 A
Capacity: 18-254 ACFM
Ultimate Vacuum: 29 in-HgV
Horsepower: 1.5-20 HP
AWD 100-660 A
Capacity: 65-660 ACFM
Ultimate Vacuum: 29 in-HgV
Horsepower: 5-50 HP
AWD 1230-4510
Capacity: 853-2884 ACFM
Ultimate Vacuum: 29 in-HgV
Horsepower: 75-200 HP
AWS 530-1400 A
Capacity: 382-1038 ACFM
Ultimate Vacuum: 29 in-HgV
Horsepower: 25-75 HP
AWS 2500-5500
Capacity: 1650-3625 ACFM
Ultimate Vacuum: 29 in-HgV
Horsepower: 100-250 HP
Liquid ring vacuum pumps are ideal for specific humid, dirty and/or high capacity applications in heavy industries. Available in Single Stage, Dual Stage, Bare Pumps, or Custom Packages, Atlas Copco can accommodate almost any need.
GVD Series
Oil-Sealed Rotary Vane Two Stage Vacuum Pumps
GVD 0.7-275
Capacity: 0.6-206 ACFM
Ultimate Vacuum: 2.0x10-3 - 7.5x10-4 Torr
Horsepower: 0.12-11.4 HP
Two-stage, oil-sealed rotary vane pumps deliver excellent ultimate vacuum pressure. High
pumping speeds and superior vapor handling capabilities. With more than 200,000 units in the
field, these pumps set the standard for R&D and scientific pumping applications.
ZRS Series
Dry Vacuum Booster Pumps
ZRS 250-4200
Capacity: 220 – 2935 ACFM
Ultimate Vacuum: 3x10-2 Torr
Horsepower: 3-15 HP
The ZRS mechanical booster pumps feature a unique hydrokinetic drive which provides efficient power transmission with benefits in economy, performance and compactness. These booster pumps are suitable for use with high differential pressures which allow the booster pump to be started at the same time as the backing pump, reducing total pump down times.
DRB Series
Dry Vacuum Booster Pumps
DRB 250-2000
Capacity: 179-1449 ACFM
Ultimate Vacuum: 3x10-2 Torr
Horsepower: 1.5-10 HP
The most frequent use of the DRB roots vacuum pumps is as an enabler for smaller primary vacuum pumps. They are designed to boost the most demanding requirements for modern vacuum-based production processes. The compact design of DRB pump means it is easy to integrate into existing vacuum systems. It is also easy to implement conversion from vertical to horizontal flow. The DRB series is also equipped with IE3 three-phase motors and consumer lesser energy and have low carbon emissions and noise levels.
Custom Packaged Systems & Parts
Packaged vacuum systems utilizing the GVS A oil-sealed rotary vane vacuum pumps, DZS dry claw pumps or AWC/AWS/AWD liquid ring pumps are available to suit specific customer demands. Standard package configurations or full custom capabilities provide endless possibilities.
Atlas Copco Vacuum FAQ
What Atlas Copco vacuum technologies are featured?
The page includes rotary vane, dry screw, dry claw, liquid ring, booster, and packaged systems. The right technology depends on vacuum level, gas load, contamination, operating schedule, and maintenance needs.
What is the GVS A Series?
GVS A is an oil-sealed rotary vane range for industrial vacuum applications. Compare pumping capacity at the required operating vacuum, installation conditions, and service needs when choosing a model.
What does VSD mean on a vacuum pump?
VSD means variable speed drive. A suitable control arrangement can adjust pump speed to demand within its operating range. Savings depend on the demand pattern and how the complete system is controlled.
What is the DHS VSD+ Series?
The page features DHS VSD+ dry screw vacuum pumps with variable-speed operation. Confirm the specific model's capacity, achievable vacuum, gas compatibility, and monitoring options for your process.
What are DZS dry claw pumps?
DZS pumps use a dry claw pumping arrangement. The process chamber operates without sealing oil, but other parts and accessories still need maintenance according to the model's instructions.
What is a DZM central vacuum package?
The featured DZM arrangement combines multiple claw pumps in a coordinated package. Size the system around simultaneous demand, operating vacuum, control strategy, and the production capacity needed if one unit is unavailable.
When is a liquid ring vacuum pump worth considering?
Liquid ring technology can suit wet gas and vapor duties. Evaluate seal-fluid compatibility, temperature, cooling, materials, and process carryover rather than assuming every liquid ring pump handles every contaminant.
What is the LRP VSD+ package?
The page features LRP VSD+ as a variable-speed liquid ring system. Review its complete operating requirements, including process conditions, service liquid, cooling, and available utilities, when comparing it with other technologies.
What is the purpose of a vacuum booster?
A booster increases pumping performance when properly matched with a backing pump. The complete combination must be selected for the process and its operating limits; it is not simply an interchangeable standalone pump.
Can I choose a pump using ultimate vacuum alone?
No. Ultimate vacuum describes a limiting condition, not the flow available throughout operation. Compare pumping speed at the required pressure, gas load, pump-down needs, and process conditions.
Should I use individual pumps or a central system?
Compare user demand, piping distance, pressure losses, contamination compatibility, and backup requirements. A central system may simplify service, while individual pumps may suit processes with different operating needs.
Why is my Atlas Copco vacuum pump overheating?
Check for cooling restrictions, inlet or exhaust restrictions, fluid issues where applicable, and operation outside design limits. Record alarms and temperatures and investigate the cause before repeatedly restarting a tripped machine.
Why is production taking longer to reach vacuum?
Air leaks, restrictions, pump wear, or increased process load can slow pump-down. Review the pump and connected system together, including valves, filters, hoses, and recent production changes.
What maintenance does an industrial vacuum pump need?
Follow the exact model's requirements for filters, lubricants where applicable, cooling, seals, and inspection. Maintenance differs between oil-sealed, dry, and liquid ring equipment, even when serving similar applications.
Does Process & Power service Atlas Copco vacuum systems?
Yes. Process & Power provides maintenance, troubleshooting, and repair support in its Mid-South markets. Call with your equipment identification, location, and symptoms to discuss available service options.
How do I request an Atlas Copco vacuum quote?
Call (901) 362-5500 with the required vacuum and flow, gas composition, moisture or contaminants, operating hours, and site utilities. Include pump-down targets and any standby requirements.
