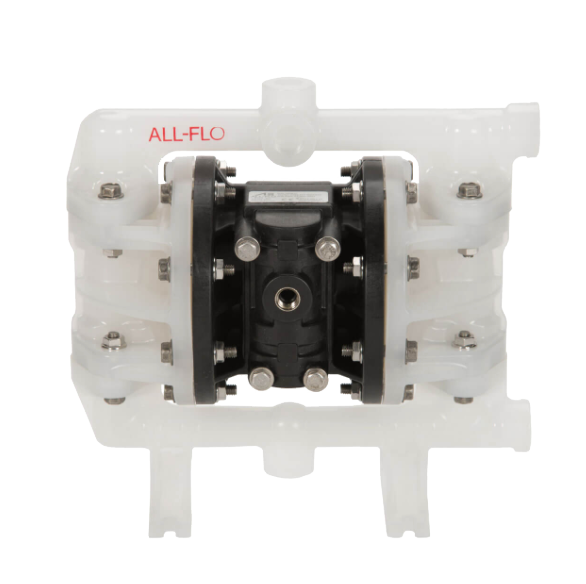

All-Flo Pump 1/2" NPT Poly/Santoprene
Model #: A050-SPP-SSPE-470

Air Inlet

• 1/4" FNPT

Liquid Inlet

• 1/2"

Liquid Discharge

• 1/2"

Connection Type

• FNPT/FBSPT (Threaded)

Max Suction Lift Capability

• 15 ft-H2O (4.6 m-H2O) Dry

• 26 ft-H2O (7.9 m-H2O) Wet

Max Flow Rate

• 17 gpm (64.6 lpm)

Max Pressure

• 120 psi (8.2 bar)

Max Diameter Solids

• 1/8" (3.2 mm)

Displacement Per Stroke

• 0.03 gal (0.10 L)
