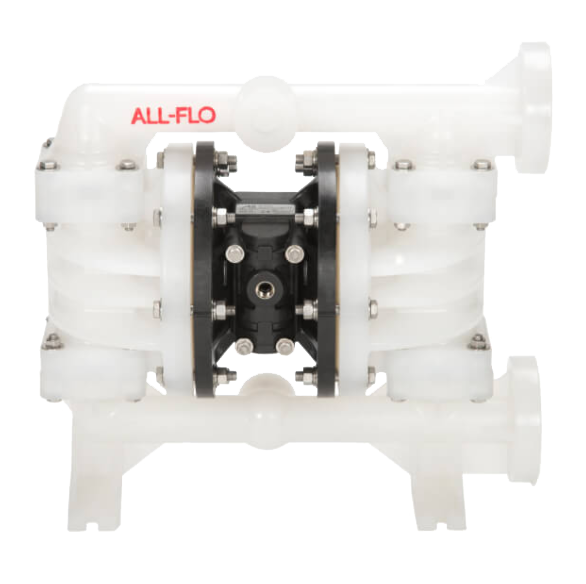

All-Flo Pump 1" Flanged/NPT Kynar/Teflon A100-CPK-TTKT-S70
$1,562.00
All-Flo Pump 1" Flanged/NPT Kynar/Teflon
Model #: A100-CPK-TTKT-S70
Air Inlet
1/4" FNPT
Liquid Inlet
1"
Liquid Discharge
1"
Connection Type
FNPT/FBSPT (Threaded)
ANSI/DIN (Flanged)
Max Suction Lift Capability
15 ft-H2O (4.6 m-H2O) Dry
26 ft-H2O (7.9 m-H2O) Wet
Max Flow Rate
41 gpm (155.8 lpm)
Max Pressure
120 psi (8.2 bar)
Max Diameter Solids
1/4" (6.4 mm)
Displacement Per Stroke
0.08 gal (0.31 L)
